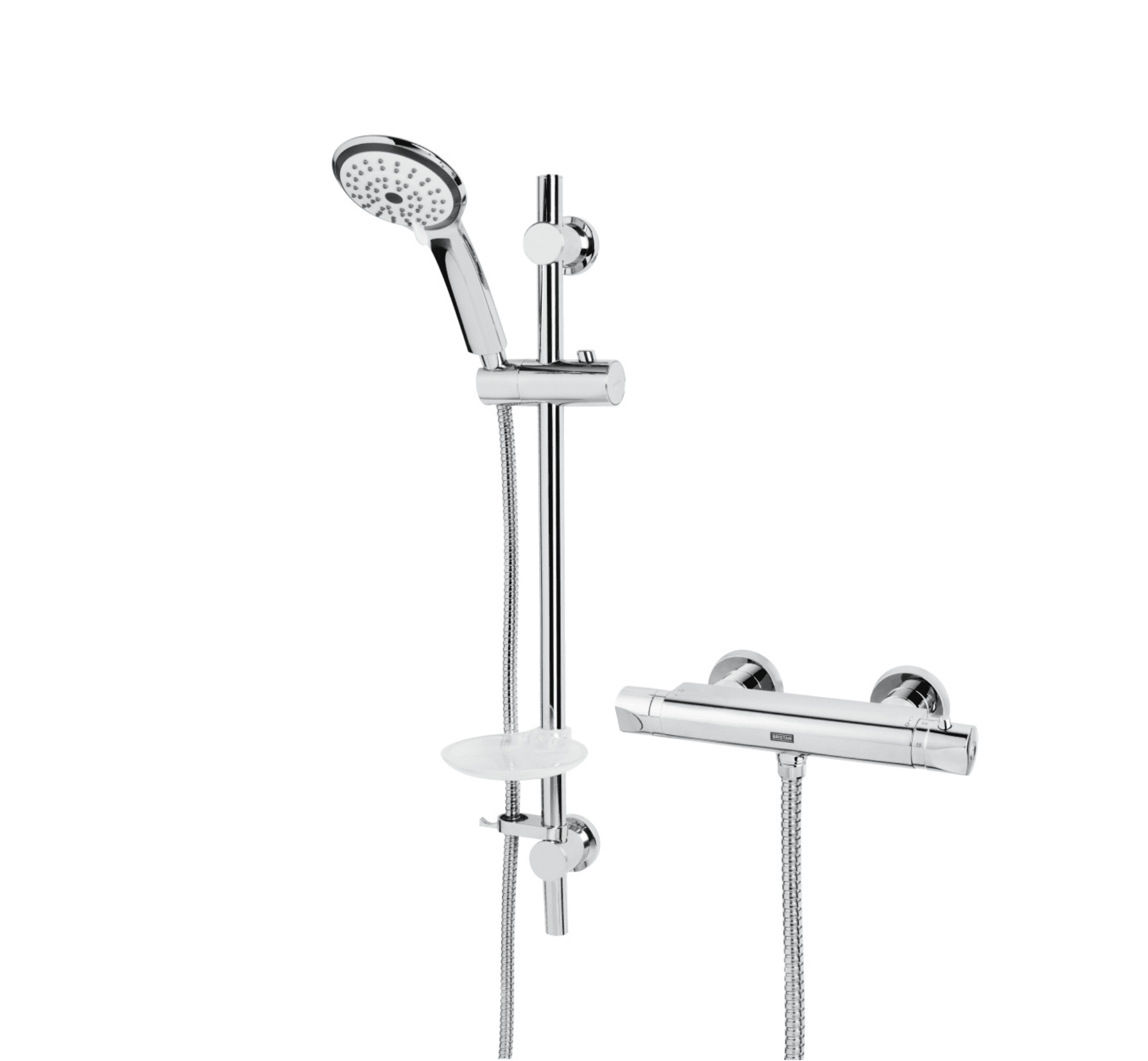

Bristan Artisan Thermostatic Bar Shower with Multi-Function Slide Rail Set (Model AR2 SHXMTFF C)

Bristan Artisan Thermostatic Bar Shower with Multi-Function Slide Rail Set Chrome (Model AR2 SHXMTFF C)

A complete thermostatic bar shower kit featuring Safe Touch technology, fast fit connections, and a multi-function handset, designed for easy installation and reliable performance.

Product Features

Brand: Bristan
Product Type: Bar shower valve with riser kit
Model Number: AR2 SHXMTFF C
Finish: Chrome plated
Material: Zinc, stainless steel and ABS
Controls: 2 (temperature and flow)
Shower Type: Thermostatic bar shower

Shower Kit Includes:
Bar shower valve
Adjustable riser rail
Multi-function handset
Shower hose

Handset: Multi-function with rub-clean nozzles

Installation: Surface mounted
Fixing System: Fast Fit connections with wall mount 12 kit
Isolation Valves: Included (hot and cold)
Check Valves: Included

Connections:
Inlet: 15mm compression
Outlet: G 1/2"

Pressure:
Minimum Dynamic Pressure: 0.2 bar
Maximum Dynamic Pressure: 5 bar
Maximum Static Pressure: 10 bar

Max Hot Water Temperature: 65°C

Flow Rate (mixed):
0.2 bar: 2.6 L/min
0.5 bar: 4.5 L/min
1 bar: 6.7 L/min
2 bar: 9.7 L/min
3 bar: 12.4 L/min
5 bar: 16.9 L/min

Safety: Safe Touch technology (cool to touch)

Certifications: WRAS approved, TMV2 approved

Guarantee: 5 years
